Description

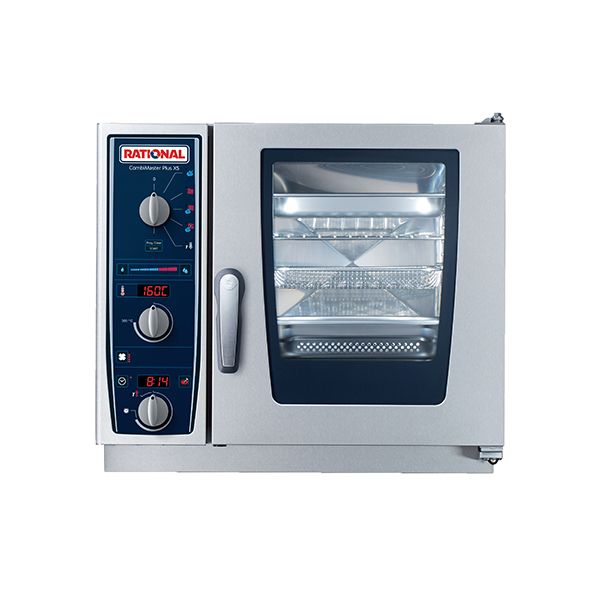

Model: XS
| Capacity | 6 x 2/3 GN |
| Number of meals per day | 20-80 |
| Lengthwise loading | 1/2, 2/3, 1/3, 2/8 GN |
| Width | 25 3/4” (655 mm) |
| Depth | 21 7/8” (555 mm) |
| Height | 22 3/8” (567 mm) |
| Water inlet | NPS 3/4″ |
| Water outlet | 1 1/2″ OD (38 mm) |
| Water pressure | 21-87 psi (1.5-6 bar) |
Electric
| Weight | 137 lb (62 kg) |
| Connected load | 5.7 kW |
| Fuse | 2 x 30 A, 3 x 20 A |
| Mains connection | 2 AC 208 V/240 V, 3 AC 208 V/240 V |
| “Hot air” output | 5.4 kW |
| “Steam” output | 5.4 kW |
Options
| Left stop for appliance door | Yes |
| Connection to energy optimisation system, potential-free contact | Yes |
| Ethernet port | Yes |
| Safety door lock | Yes |
| Integrated fat drain (models XS 61, 101, 62, 102 only in conjunction with UG II or US IV) | – |
| Externally attachable core temperature probe | – |
| Lockable control panel | – |
| Marine version (electric appliances only) | Yes |
| Mobile with castors (4 castors with locking brake) | – |

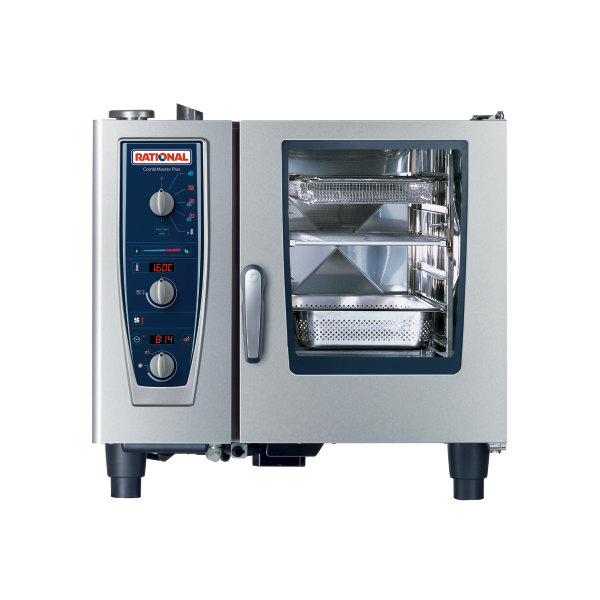

Model: 61
| Capacity | 6 x 1/1 GN |
| Number of meals per day | 30–100 |
| Lengthwise loading | 1/1, 1/2, 2/3, 1/3, 2/8 GN |
| Width | 33 1/4” (847 mm) |
| Depth | 30 3/8” (771 mm) |
| Height | 30 3/4” (782 mm) |
| Water inlet | R 3/4“ |
| Water outlet | 2″ OD (50 mm) |
| Water pressure | 150–600 kPa or 0.15-0.6 Mpa |
Electric
| Weight | 232 lbs (105.5 kg) |
| Connected load | 11.1 kW |
| Fuse | 3 × 16 A |
| Mains connection | 3 AC 208 V / 3 AC 240 V |
| “Hot air” output | 10.6 kW |
| “Steam” output | 9 kW |
Gas
| Weight | 251 lb (114 kg) |
| Height incl. flow guard | 1,012 mm |
| Electrical connected load | 0.4 kW |
| Fuse | 1 x 15 A |
| Mains connection | 1 x 15 A |
| Gas supply/connection | NPS 3/4” |
Natural gas/liquefied petroleum gas LPG
| Max. nominal heat input | 13 kW/13 kW |
| “Hot air” output | 13 kW/13 kW |
| “Steam” output | 12 kW/12 kW |
Options
| Left stop for appliance door | Yes |
| Connection to energy optimisation system, potential-free contact | Yes |
| Ethernet port | Yes |
| Safety door lock | Yes |
| Integrated fat drain (models XS 61, 101, 62, 102 only in conjunction with UG II or US IV) | Yes |
| Externally attachable core temperature probe | Yes |
| Lockable control panel | Yes |
| Marine version (electric appliances only) | Yes |
| Mobile with castors (4 castors with locking brake) | – |

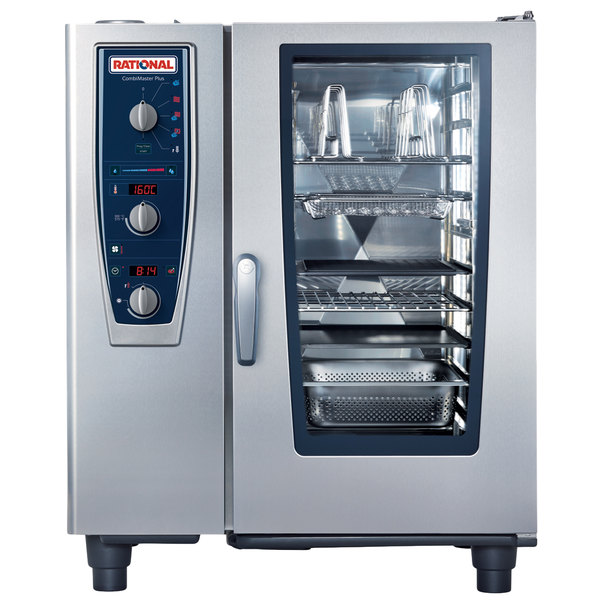

Model: 101
| Capacity | 10 x 1/1 GN |
| Number of meals per day | 80-150 |
| Lengthwise loading | 1/1, 1/2, 2/3, 1/3, 2/8 GN |
| Width | 33 1/4” (847 mm) |
| Depth | 30 3/8” (771 mm) |
| Height | 41” (1,042 mm) |
| Water inlet | R 3/4“ |
| Water outlet | 2″ OD (50 mm) |
| Water pressure | 150–600 kPa or 0.15-0.6 Mpa |
Electric
| Weight | 311.5 lbs (141.5 kg) |
| Connected load | 22.1 kW |
| Fuse | 3 × 32 A |
| Mains connection | 3 AC 208 V / 3 AC 240 V |
| “Hot air” output | 21.6 kW |
| “Steam” output | 18 kW |
Gas
| Weight | 315 lb (143 kg) |
| Height incl. flow guard | 1,272 mm |
| Electrical connected load | 0.5 kW |
| Fuse | 1 x 15 A |
| Mains connection | 1 x 15 A |
| Gas supply/connection | NPS 3/4” |
Natural gas/liquefied petroleum gas LPG
| Max. nominal heat input | 22 kW/22 kW |
| “Hot air” output | 22 kW/22 kW |
| “Steam” output | 20 kW/20 kW |
Options
| Left stop for appliance door | Yes |
| Connection to energy optimisation system, potential-free contact | Yes |
| Ethernet port | Yes |
| Safety door lock | Yes |
| Integrated fat drain (models XS 61, 101, 62, 102 only in conjunction with UG II or US IV) | Yes |
| Externally attachable core temperature probe | Yes |
| Lockable control panel | Yes |
| Marine version (electric appliances only) | Yes |
| Mobile with castors (4 castors with locking brake) | – |

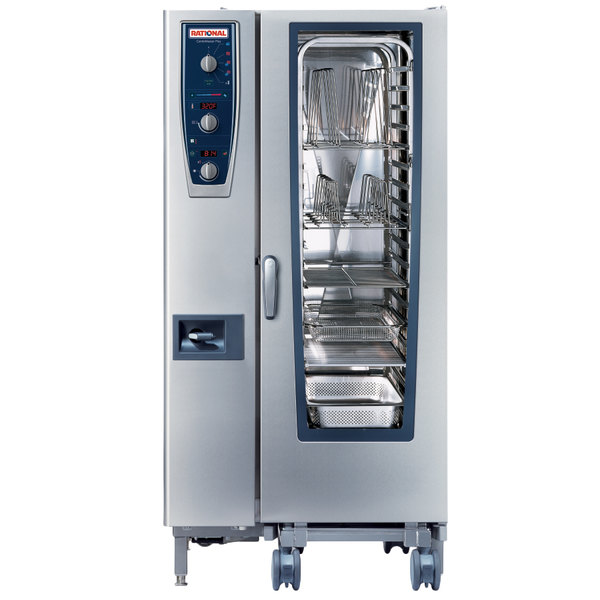

Model: 201
| Capacity | 20 x 1/1 GN |
| Number of meals per day | 150-300 |
| Lengthwise loading | 1/1, 1/2, 2/3, 1/3, 2/8 GN |
| Width | 34 1/2” (879 mm) |
| Depth | 31 1/8” (791 mm) |
| Height | 70 1/8” (1,782 mm) |
| Water inlet | R 3/4“ |
| Water outlet | 2″ OD (50 mm) |
| Water pressure | 150–600 kPa or 0.15-0.6 Mpa |
Electric
| Weight | 570 lb (259 kg) |
| Connected load | 38 kW |
| Fuse | 3 × 63 A |
| Mains connection | 3 AC 208 V / 3 AC 240 V |
| “Hot air” output | 36 kW |
| “Steam” output | 36 kW |
Gas
| Weight | 626 lb (284 kg) |
| Height incl. flow guard | 2,087 mm |
| Electrical connected load | 0.95 kW |
| Fuse | 1 x 15 A |
| Mains connection | 1 x 15 A |
| Gas supply/connection | NPS 3/4” |
Natural gas/liquefied petroleum gas LPG
| Max. nominal heat input | 44 kW/44 kW |
| “Hot air” output | 44 kW/44 kW |
| “Steam” output | 38 kW/38 kW |
Options
| Left stop for appliance door | – |
| Connection to energy optimisation system, potential-free contact | Yes |
| Ethernet port | Yes |
| Safety door lock | Yes |
| Integrated fat drain (models XS 61, 101, 62, 102 only in conjunction with UG II or US IV) | Yes |
| Externally attachable core temperature probe | Yes |
| Lockable control panel | Yes |
| Marine version (electric appliances only) | Yes |
| Mobile with castors (4 castors with locking brake) | Yes |
